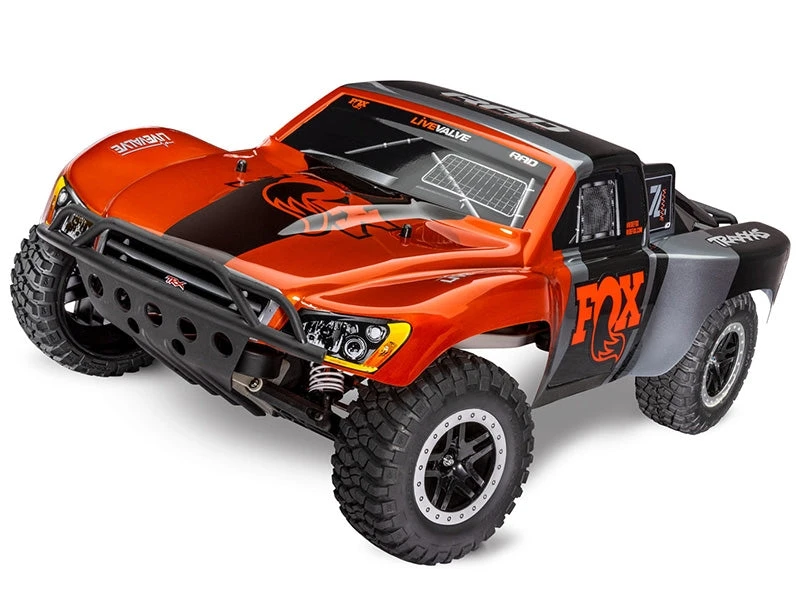

Traxxas Slash VXL Brushless RTR Short Course Truck – Fox TRX58076-74-FOX

Pro Series Magnum 272R™ Transmission

The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Slash VXL.

Class-Leading Velineon Brushless Power

The Velineon brushless motor and electronic speed control (ESC) deliver the ultimate in efficiency, speed, and run time. With the Slash VXL, your battery selection determines your speed and skill level. Velineon accepts a wide range of batteries, including powerful 3-cell LiPo packs. These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 65 mph! Built-in low-voltage detection in the VXL-3s™ ESC helps you maintain your LiPo packs in top condition.

Traxxas Stability Management®
Micro Receiver, TQi 2.4GHz with Traxxas Link and TSM (5-channel) (#6533) (three-quarter view)Traxxas Stability Management (TSM) works behind the scenes to help prevent spinouts and loss of control on slippery surfaces. TSM senses the vehicle’s direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the vehicle’s line for faster exit speeds.

QUICK FEATURES ON SLASH VXL
­

• NEW! Magnum 272R transmission
• Aluminum motor plate
• All-metal internal gears
• Sealed beveled-gear differential
• NEW! ProGraphix® paint
• Velineon® brushless power system
• Traxxas Stability Management TSM®
• TQi 2.4GHz transmitter and receiver
• Waterproof electronics
• Digital high-torque waterproof steering servo
• Precision steel turnbuckles with heavy-duty rod ends
• 100% Fully assembled and Ready-To-Race®
• Battery and charger sold separately

• Length ­ 22.36 inches (568 mm)
• Front Track ­ 11.65 inches (296 mm)
• Rear Track ­ 11.65 inches (296 mm)
• Weight ­ 90.4 ounces (2.56 kg)
• Height (overall) ­ 8.43 inches (214 mm)
• Wheelbase ­ 13.2 inches (335 mm)
• Front Shock Length ­ Long
• Rear Shock Length ­ XXLong
• Front Tires ­ Slash 2.2 (Pre-Glued with Inserts)
• Rear Tires ­ Slash 2.2 (Pre-Glued with Inserts)
• Front Wheels ­ 2.2″ Satin or Chrome-Finish
• Rear Wheels ­ 2.2″ Satin or Chrome-Finish
• Speed Control Type ­ VXL-3s™ Electronic Speed Control
• Motor (electric) ­ Velineon® 3500 Brushless
• Gear Ratio (internal) ­ 2.72 (final drive: 10.2)
• Differential Type ­ Steel Composite Planetary
• Gear Pitch ­ 48-Pitch
• Transmission ­ Metal Gear Magnum 272™
• Steering ­ Bellcrank
• Chassis Type ­ Long-wheelbase fiber-composite chassis
• Chassis Material ­ Composite Nylon
• Center Ground Clearance ­ 3.5 inches (89 mm)
• Top Speed ­ 60+mph*
• Radio System (transmitter) ­ TQi™ 2.4GHz (2-channel)
• Radio System (receiver) ­ Traxxas Stability Management® (#6533)
• **Battery Tray Dimensions ­ 165 mm x 49.5 mm x 23 mm, 25 mm

Required for Use:

• Battery: 8.4v NiMH, 7.4v LiPo or 11.1v LiPo
• Suitable Charger
• x4 AA Batteries for Transmitter
