The B45CHMZ is a low profile servo rated at a massive 14kg torque at an incredibly quick 0.085 seconds @8.4v.
Perfect for classes such as 1/10 Touring Car (EP & IC), 2WD Buggy, 4WD Buggy, F1, Drifting, etc.
They feature a Hybrid Aluminium / Polymer case to provide a more light weight and cost effective solution. The Aluminium centre section also works as a heat sink to keep the servo cool. 25T tooth spline, use the same horns as Futaba or Savox etc. Supplied complete with horns and mounting grommets.

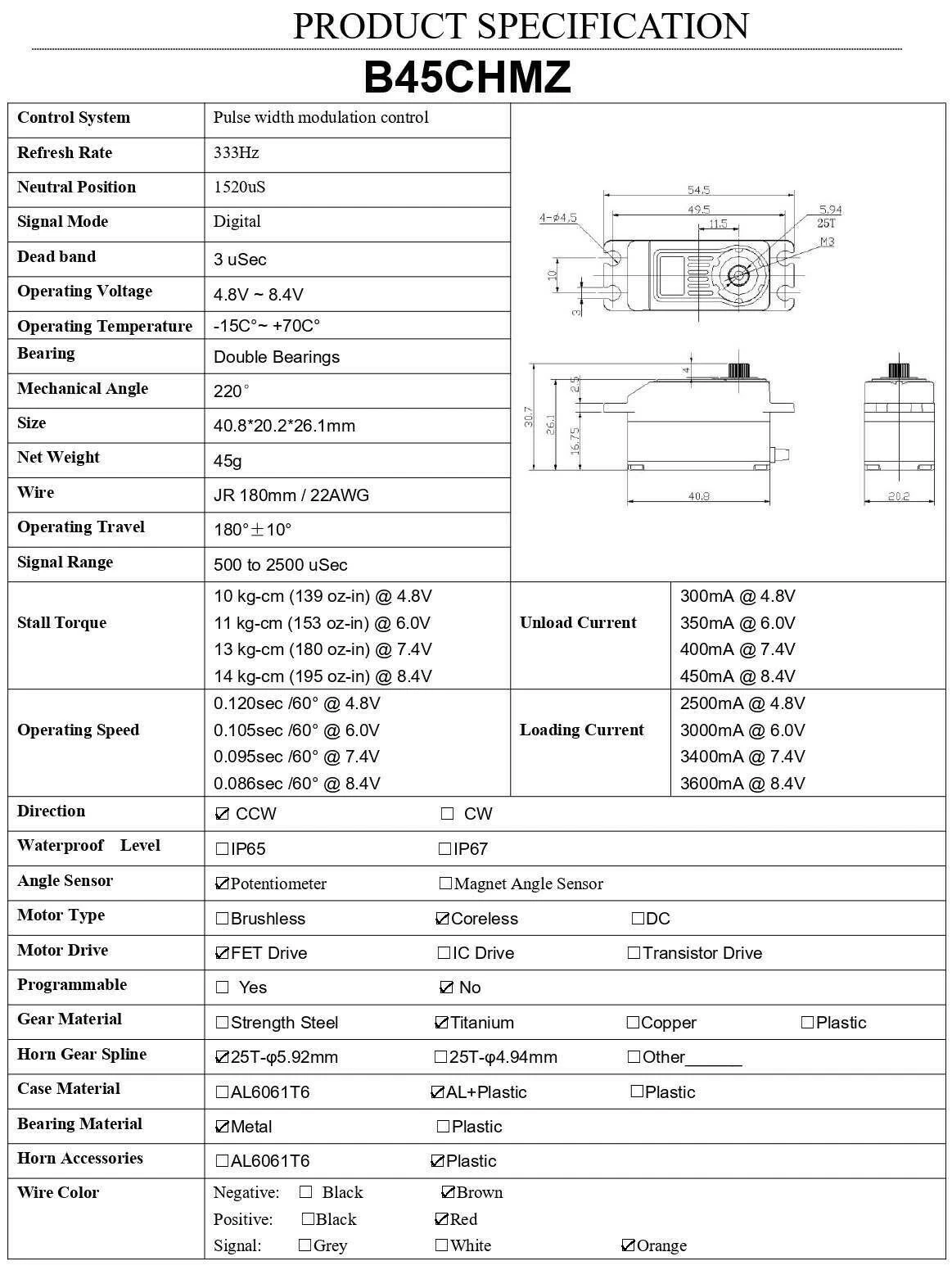

Specs:
HV compatible, suitable for all common receiver battery voltages (4.8-8.4v)
Precision Titanium Gears used throughout
Hybrid Aluminium / Polymer case for Light weight, strength and excellent heat dissipation
Dual main bearings
25T output shaft (Futaba / Savox)
Torque ( 6.0V / 7.4V / 8.4V ) : 11 / 13 / 14 kg.cm
Speed ( 6.0V / 7.4V / 8.4V ) : 0.105 / 0.095 / 0.085 Sec/60°
Length; 40.8mm
Width; 20.2mm
Height; 26.1mm
Weight; 45g
Motor type; Coreless
