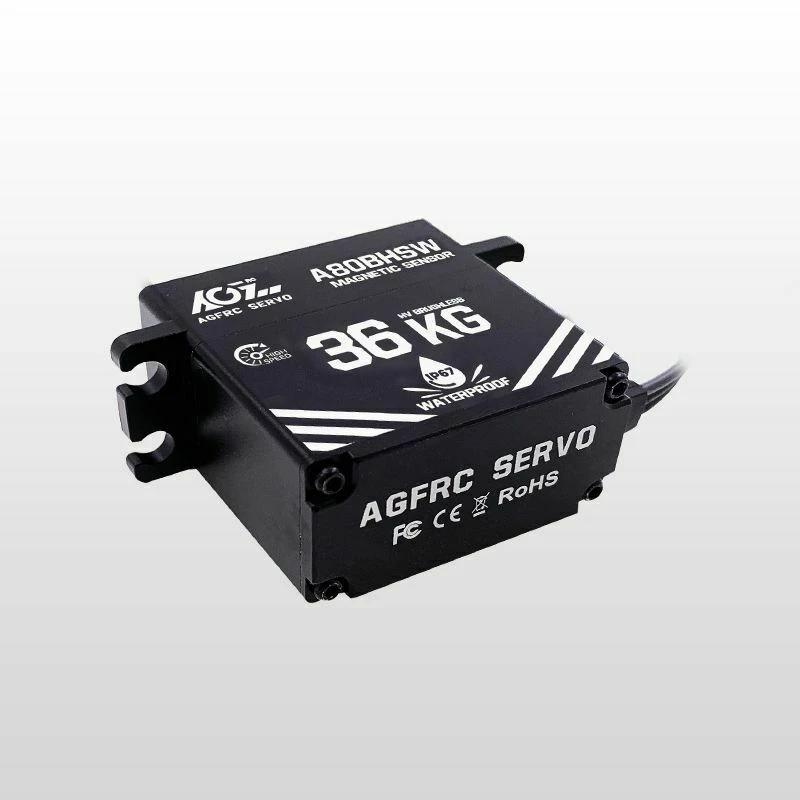

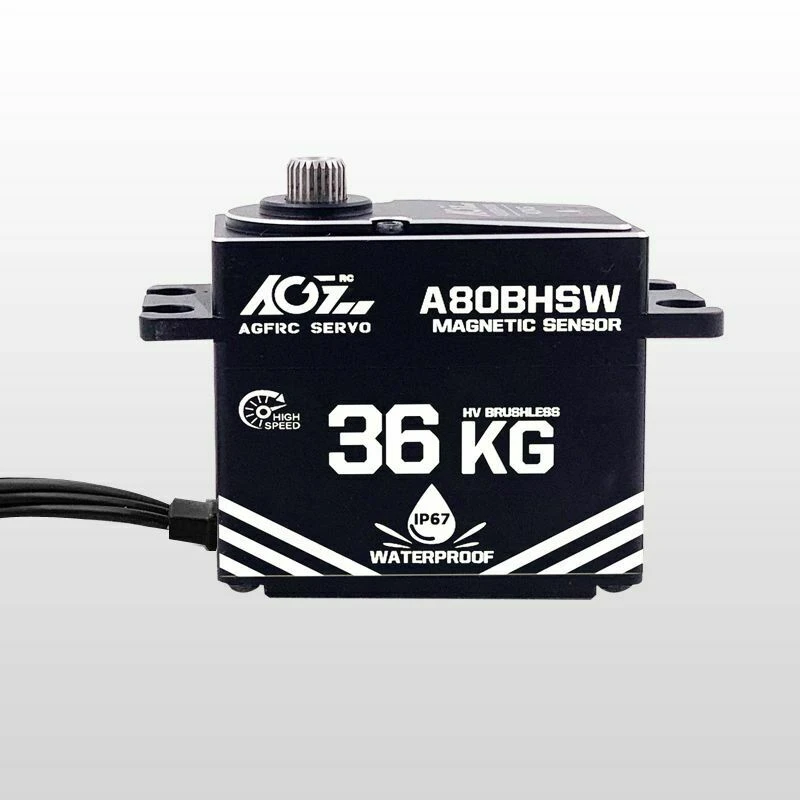

Brushless Servo 36KG HV AGF-RC A80BHSW Full Metal Case Waterproof High Voltage

The A80BHSW is rated at a massive 36kg torque at an incredibly quick 0.071 seconds.

These servos do not have a potentiometer (variable resistor) for the position sensor, Instead they feature a solid state magnetic sensor that is less sensitive to vibration and wear and tear.



They feature a full CNC aluminium case and are waterproof, rated to IP67. They use super strong steel gears throughout along with 2 ball bearings. The servo can also be programed using AGF USB interface (sold separately). 25 tooth spline, use the same horns as Futaba or Savox etc. Supplied complete with horns and mounting grommets.

Specs:

Full CNC Aluminium case, Waterproof rated to IP67

Solid State magnetic position Sensor (no more Potentiometers)

Precision Steel Gears used throughout

Full Aluminium CNC case for strength and excellent heat dissipation

Aluminium mounting tabs

Dual main bearings

25T output shaft (Futaba / Savox)

Torque ( 6.0V / 7.4V / 8.4V ) : 28 / 33 / 36 kg.cm

Speed ( 6.0V / 7.4V / 8.4V ) : 0.1 / 0.083 / 0.071 Sec/60°

Length; 40mm

Width; 20mm

Height; 37.5mm

Weight; 79g

Gear Material; Steel (spares available)

Motor type; Brushless
